- All Products
- Justerbar gasram med 1 ben

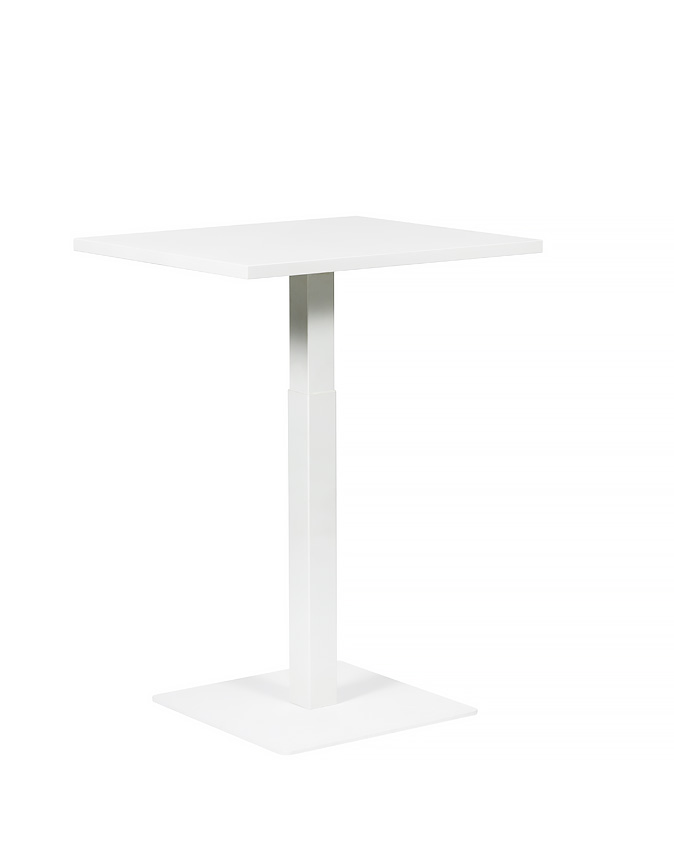

Compact adjustable gas frame for small spaces.
One table for many purposes, no matter the height of the user.
Adjusting the frame is possible with the lever that is positioned at the edge of the table by pressing the lever and holding the edges of the table top.
Colors: White (RAL90016), Grey (RAL7045), Black (RAL9005)
Options for the height of the gas spring: 685 mm and 585 mm
Warranty: 2 years
Färg | Vit or Grå or Svart |
Kaasupilari | Nostopilari, kaasujousella 685 or Nostopilari, kaasujousella 585 |
Gas spring 685
Features
- Installation height: 685 mm
- Max adjusting height: 1170 mm
- Stroke: 490 mm
- Lift capacity: 70 N
- Foot part: 480 x 480 x 4 mm
- Total weight: 22 kg
700 mm x 700 mm tabletop can be fitted to the frame.
Package dimensions
- The frame will be delivered in two packages.
- Pillar package: 70 x 16 x 16 cm 8 kg
- Footpart package: 50 x 49 x 2 cm 14 kg
List of parts:
- 1 x Lifting pillar
- 1 x Foot part
- 2 x cable fasteners
- 14 x Wood screw K5x20
- 2 x Wood screw K4x16
- 4 x Allen screw UM6x30
Gas spring 585
Features
- Installation height: 585 mm
- Max adjusting height: 970 mm
- Stroke: 490 mm
- Lift capacity: 70 N
- Foot part: 480 x 480 x 4 mm
Package dimensions
- The frame will be delivered in two packages.
- Pillar package:
- Foot part package:
List of parts:
- 1 x Lifting pillar
- 1 x Foot part
- 2 x cable fasteners
- 14 x Wood screw K5x20
- 2 x Wood screw K4x16
- 4 x Allen screw UM6x30
