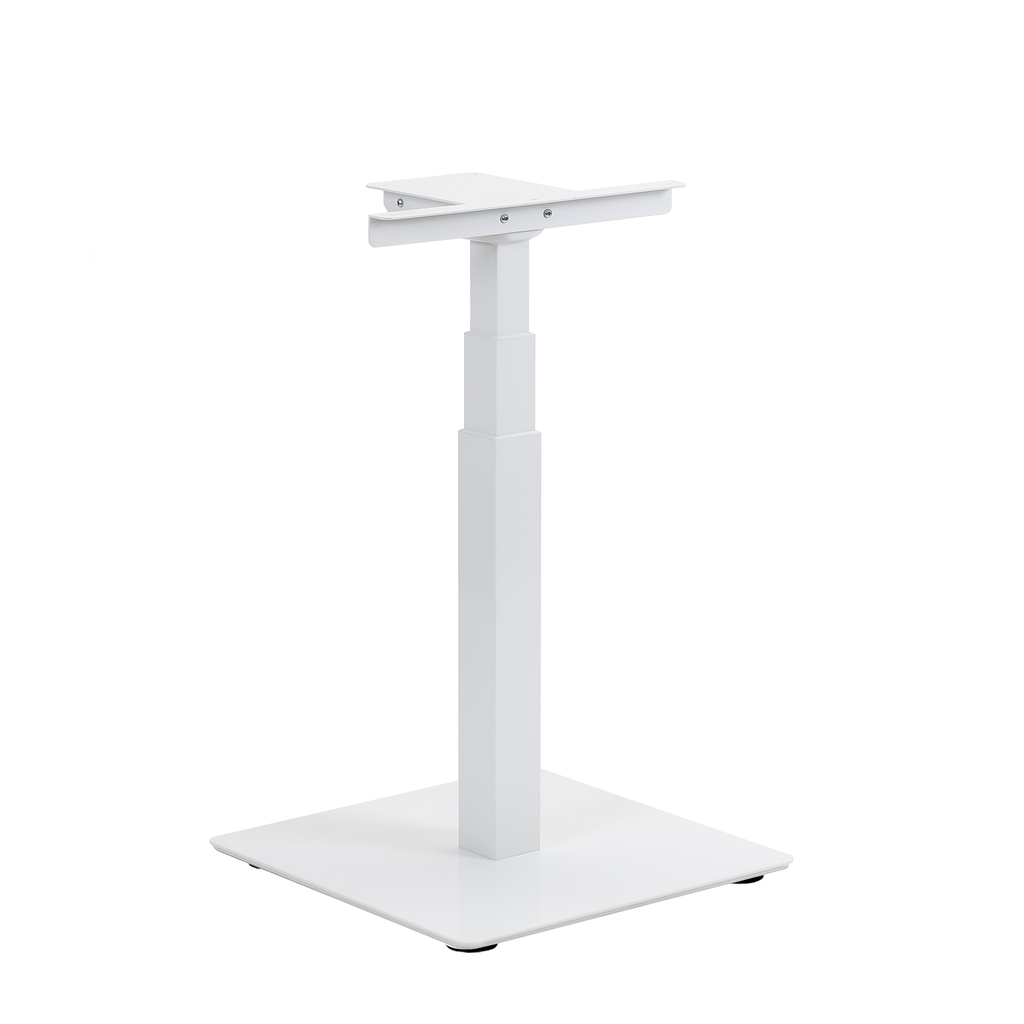

- Justerbar 1-benad elektrisk ram JC35QT-D8
JC35QT-D8

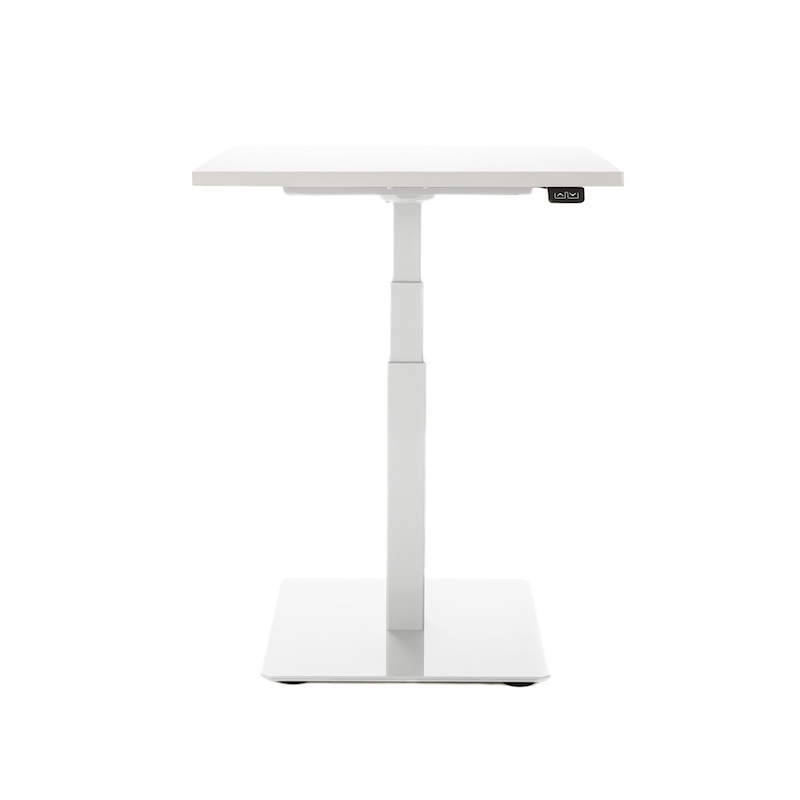

Compact and adjustable electric frame for small spaces!
Table top in size 700x600 mm can be attached to the frame.
Furniture castors with breaks can be added to the 1-leg frame.
Height adjustment range: 585 - 1235 mm without table top, + 55 mm with furniture castors
Stroke: 650
Speed: 40 mm/s
Lift capacity: 80 kg
Colors: White RAL9016, Grey RAL7045 and Black RAL9005
Square foot part: 50x50x4 cm
Warranty: 5 years
Färg | Vit or Grå or Svart |
Features
- Height adjustment range: 585 - 1235 mm
- Stroke: 650
- Speed: 40 mm/s
- Lift capacity: 80 kg
- Colors: White RAL9016, Grey RAL7045 and Black RAL9005
- Square foot part: 50x50x4 cm
- Compatible: JCB36N1
Compatible with all Jiecang hand controls.
Compatible with furniture castors.
Package dimensions
- Product is delivered in two (2) packages.
- Foot part: 20 kg / 58x58x8 cm
- Lifting column: 12,6 kg / 71x40x15 cm
- Weight: 32,6 kg
List of parts:
- 1 x Lifting column JS36DS1-3-S
- 1 x Control box JCB36N1
- 1 x Hand control JCHT35K
- 1 x Two-pin power cord
- 1 x Foot part
- 1 x Connecting cable 1 m
- 1 x Upper frame 440x230x160 mm
- 1 x Cable clip
- 4 x Leveling feet
- 5 x Intermediate sleeve
- 9 x Wood screw K5x16
- 6 x Allen screw KM6x10
- 4 x Allen screw UM6x20
