Handset with 3 memory buttons, round JCHT35M6

Käsiohjain, 3-muistipaikkaa, pyöreä JCHT35M6

Handset with 3 memory buttons, round JCHT35M6

This combination does not exist.

Category: Electric table parts

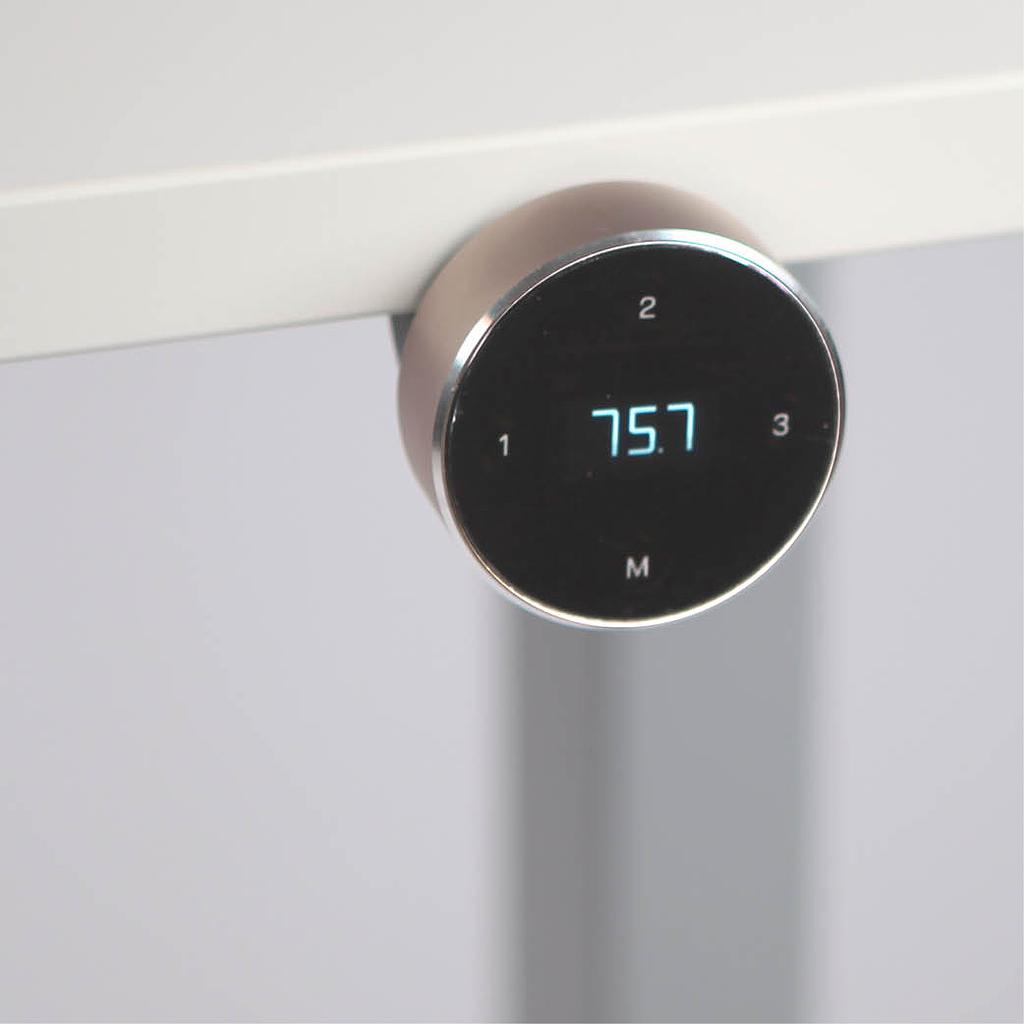

Hand controller JCHT35M6, round with 3 memory places

The JCHT35M6 is an innovative touch and swivel hand controller that is the perfect choice for office desks.

From the OLED screen, you'll see the heights, and to the controller, you can place a sitting reminder, maximum and minimum limit, and also an automatic locking. There are 3 memory places on the hand controller.

The JCHT35M6 can be mounted on a variety of height adjustable desks, allowing easy control of desk elevation by rotation.

The JCHT35M6 can display error codes to help analyse potential system faults.

Features

OLED screen shows the actual height
Buttons: Hand controller has 4 pressable buttons (3 for memory places, 1 for saving)
Touch screen, reversible design, seat reminder, maximum and minimum limit, automatic lock
Color: Space white
Cord length: 2000 mm 8-pin chrystal plug
Diameter of the controller: Ø 60 mm

Use

Compatible control box: JCB35N1, JCB35N2, JCB35N3, JCB35N4
Ambient temperature: Indoor (+5°C to +40°C)

Instructions for reset:

Press and hold down the DOWN button on the hand control until the table reaches its lowest height. Release the ALAS button. Press and hold the ALAS button again until the LED display reads "RST". Release the ALAS button. Your desktop is now ready for use.

If your desktop does not work properly, it may need to be reset. If your desk has a handheld controller with an LED display showing "RST", perform the reset procedure in the same way if the body only moves downwards.

If the LED display shows an error message (''E01-E013''), make sure that all wired connections are properly connected (feet to cables, cables to control box). Then perform the reset procedure.

If the error message persists after reset, contact your dealer.

If the display shows "HOT", allow the frame to cool for 20 minutes.
