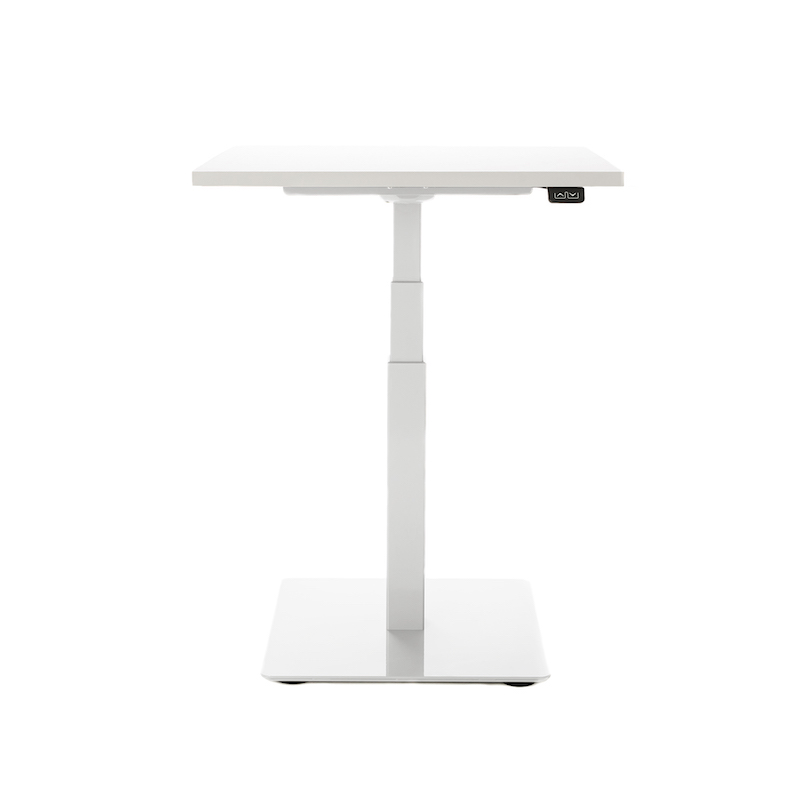

Adjustable 1-leg electric frame, JC35QT-D8

Features

• Height adjustment range: 585 - 1235 mm
• Stroke length: 650
• Speed: 40 mm/s
• Lifting capacity: 80 kg
• Colours: White RAL9016, grey RAL7045 and black RAL9005
• Footprint square flange: 50x50x4cm
• Compatible: JCB36N1

Compatible with all Jiecang controllers.

Compatible with Jiecang Jiecang wheels.

Link to the assembly video:

https://youtu.be/DFUSHtCqEAg

Link to the troubleshooting video:

https://youtu.be/-mtClVVOejw

Package dimensions

• The product consists of two (2) separate packages.
• Foot part: 20 kg / 58x58x8 cm
• Lifting pillar: 12,6 kg / 71x40x15 cm
• Weight in total: 32,6 kg

List of parts:

• 1 x Lifting column JS36DS1-3-S
• 1 x Control box JCB36N1
• 1 x Handset JCHT35K
• 1 x Power cord (two-terminal)
• 1 x Foot part
• 1 x Connecting cable 1m
• 1 x Upper frame 440x230x160mm
• 1 x Cable clip
• 4 x Adjustable levelling feet
• 5 x Intermediate collet
• 9 x Wood screw K5x16
• 6 x Allen screw KM6x10
• 4 x Allen screw UM6x20
