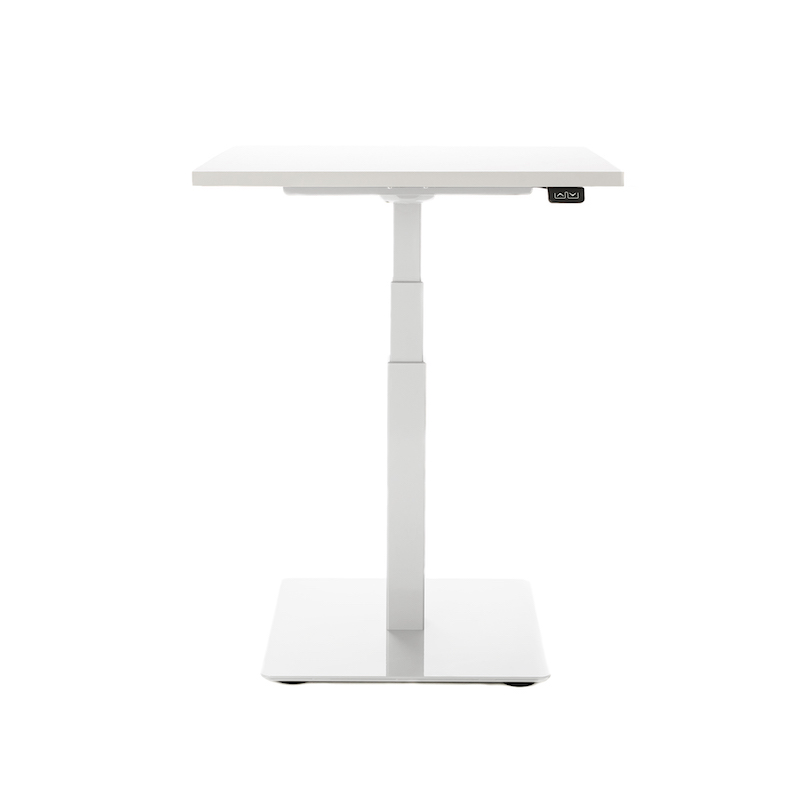

1-leg adjustable electric frame JC35QT-D8

Features

• Height adjustment range: 585 - 1235 mm
• Stroke: 650
• Speed: 40 mm/s
• Lift capacity: 80 kg
• Colors: White RAL9016, Grey RAL7045 and Black RAL9005
• Square foot part: 50x50x4 cm
• Compatible: JCB36N1

Compatible with all Jiecang hand controls.

Compatible with furniture castors.

Assembly:

https://youtu.be/DFUSHtCqEAg

Troubleshooting:

https://youtu.be/-mtClVVOejw

Package dimensions

• Product is delivered in two (2) packages.
• Foot part: 20 kg / 58x58x8 cm
• Lifting column: 12,6 kg / 71x40x15 cm
• Weight: 32,6 kg

List of parts:

• 1 x Lifting column JS36DS1-3-S
• 1 x Control box JCB36N1
• 1 x Hand control JCHT35K
• 1 x Two-pin power cord
• 1 x Foot part
• 1 x Connecting cable 1 m
• 1 x Upper frame 440x230x160 mm
• 1 x Cable clip
• 4 x Leveling feet
• 5 x Intermediate sleeve
• 9 x Wood screw K5x16
• 6 x Allen screw KM6x10
• 4 x Allen screw UM6x20
