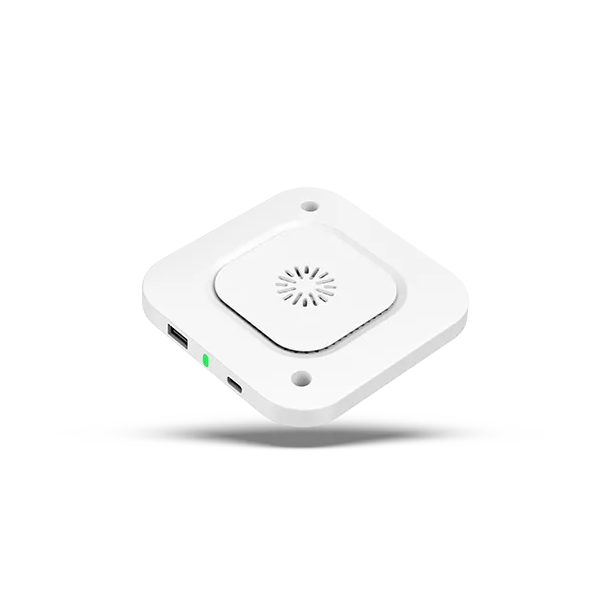

A wireless Qi-charger is attached under the desk's tabletop. It supports wireless charging for mobile phones and other devices. The charger comes with a "charger sticker" that works as a counterpart. The sticker is placed on top of the tabletop for enhanced charging effectivity. The wireless charger works without the sticker, too.
Charging distance ranges from 15 to 35 mm.
The wireless charger is powered from the JIECANG desktop control unit.
Power output (wireless and with wire) max 10 W.
The charger meets all applicable safety standards.
Features
Nominal voltage range: 22 - 40 Vdc
Nominal voltage: 24/33 Vdc
Charging distance: 13 mm - 28 mm
Standby power consumption: <1 W
Nominal input: 0,4Adc @25mm; 5W load; 24VI-input
Efficiency: >50 % @25mm; 5W load; 24V input
Temperature rise: Nominal input and -output, environment temperature 23±2 ℃, long operating time
