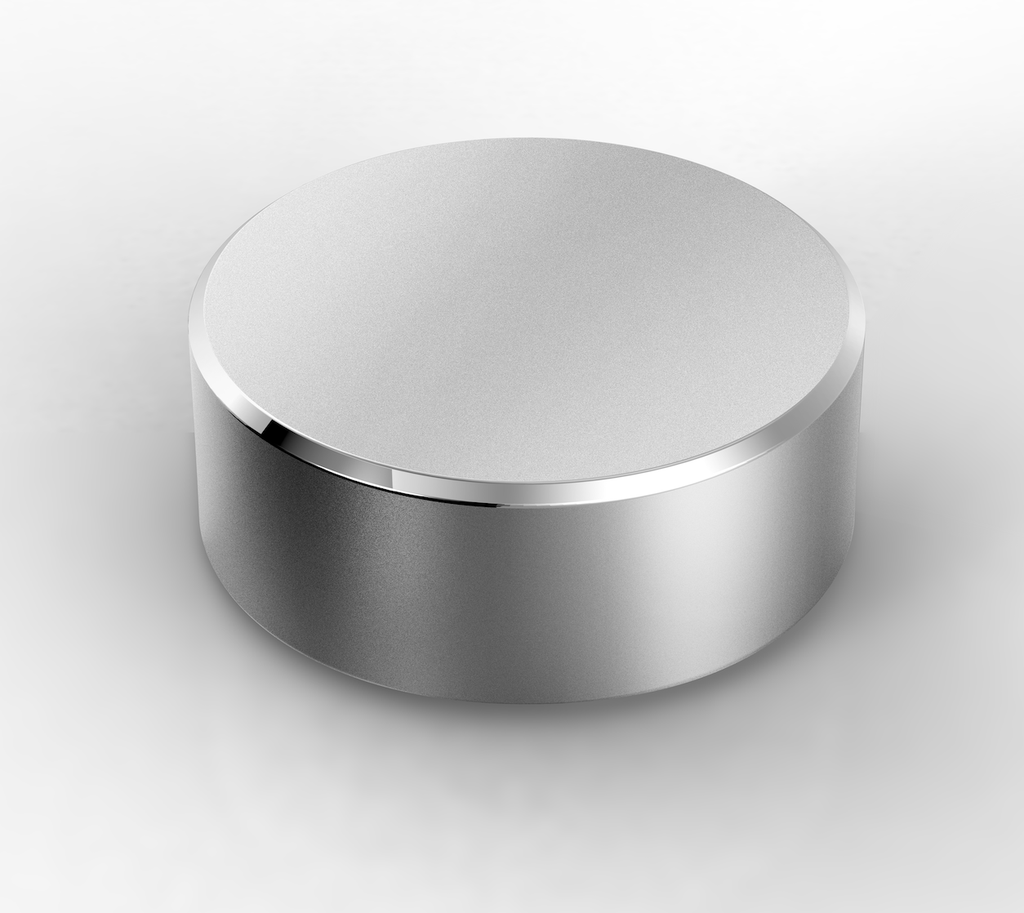

JCH35R1 is a wireless, elegant aluminum hand controller.
Connected to the 2,4G receiver. The hand controller operates by rotating it for up/down movement and it has 2 memory places.

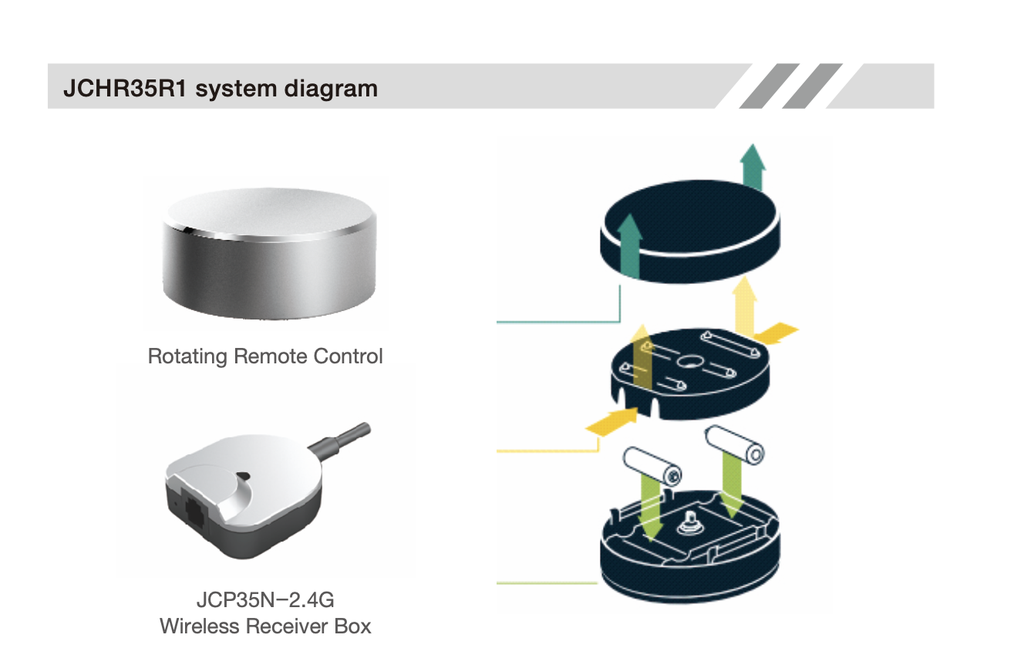

A wireless receiver is included with the packaging. Batteries are not included.
Features
Wireless hand controller with a 5-meter operating radius to 2.4G receiver.
Wireless frequency: 2.4G Hz

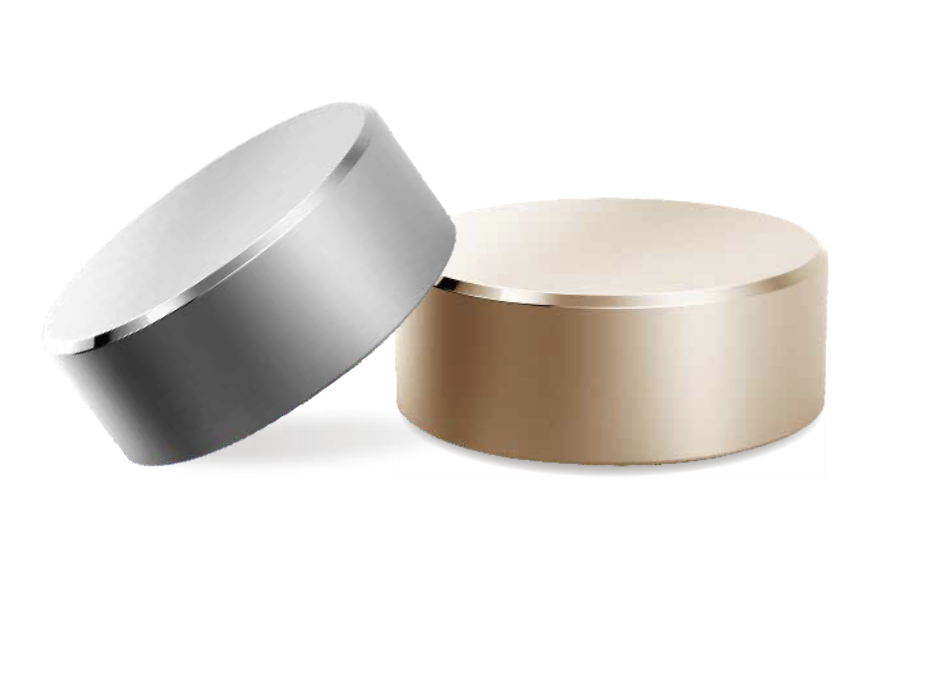

Color: Space grey
Material: Aluminum
Memory places: 2
Power source: AAA batteries x 2

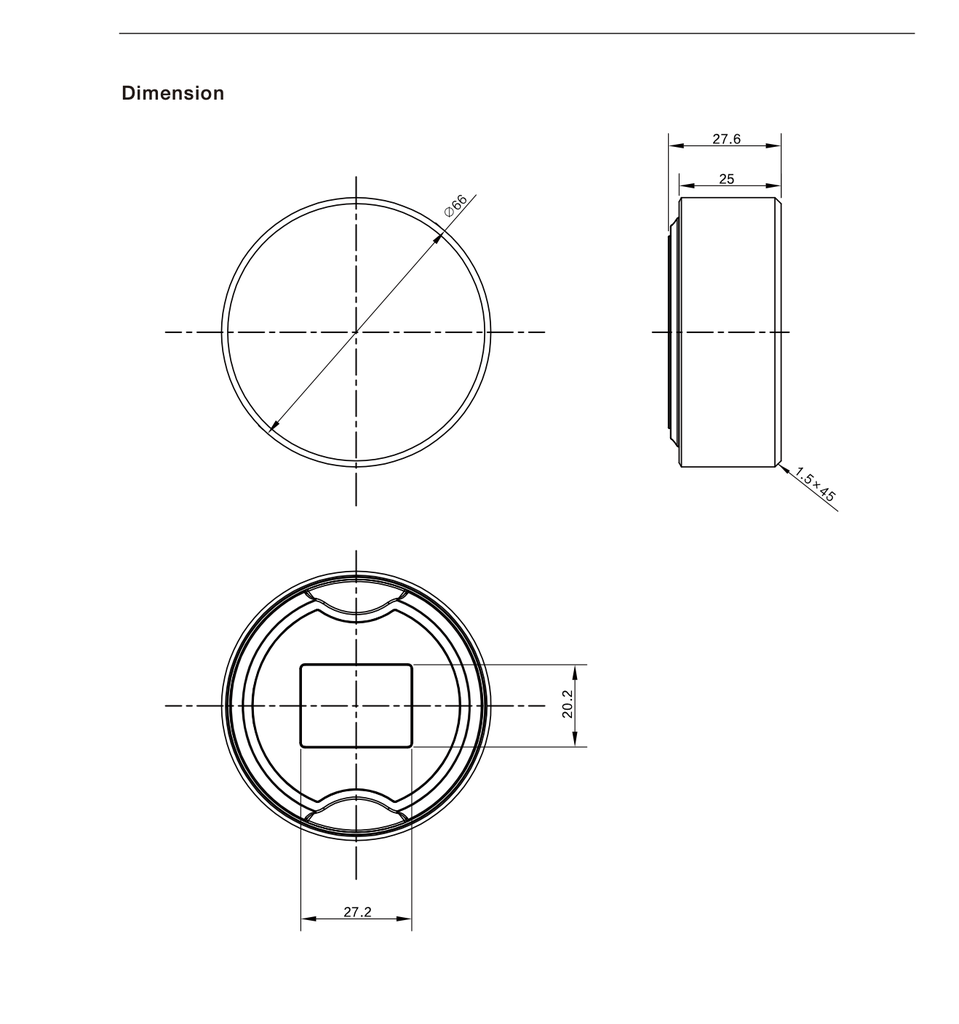

Contoller diameter: Ø 66 mm
Depth: 27,6 mm
Operating environment, temperature: 0~40 ℃ (for indoor use only)
Standby time: 10 kk (long standby time with batteries)
FCC hyväksytty.
Patenoitu tuote.

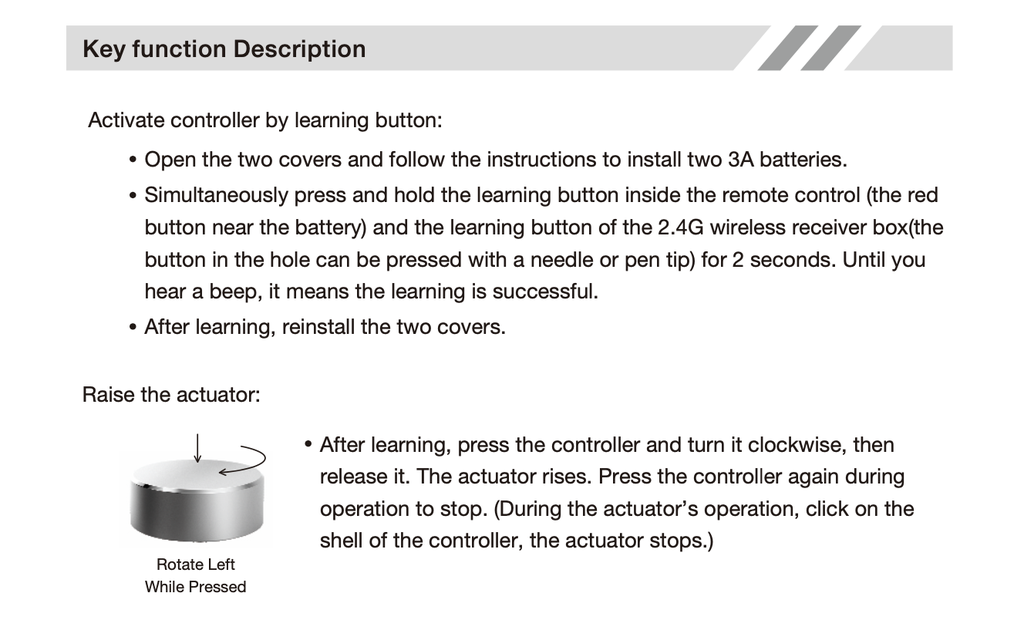

Activate controller by learning button:
Open the two covers and follow the instructions to install two 3A batteries.
Simultaneously press and hold the learning button inside the remote control (the red button near the battery) and the learning button of the 2.4G wireless receiver box (the button in the hole can be pressed with a needle or a pen tip) for 2 seconds. Until you hear a beep, it means the learning is succesful.
After learning, reinstall the two covers.
Raise the actuator:
After learning, press the controller and turn it clockwise, then release it. The actuator rises. Press the controller again during operation to stop. (During the actuator's operation, click on the shell of the controller, the actuator stops.

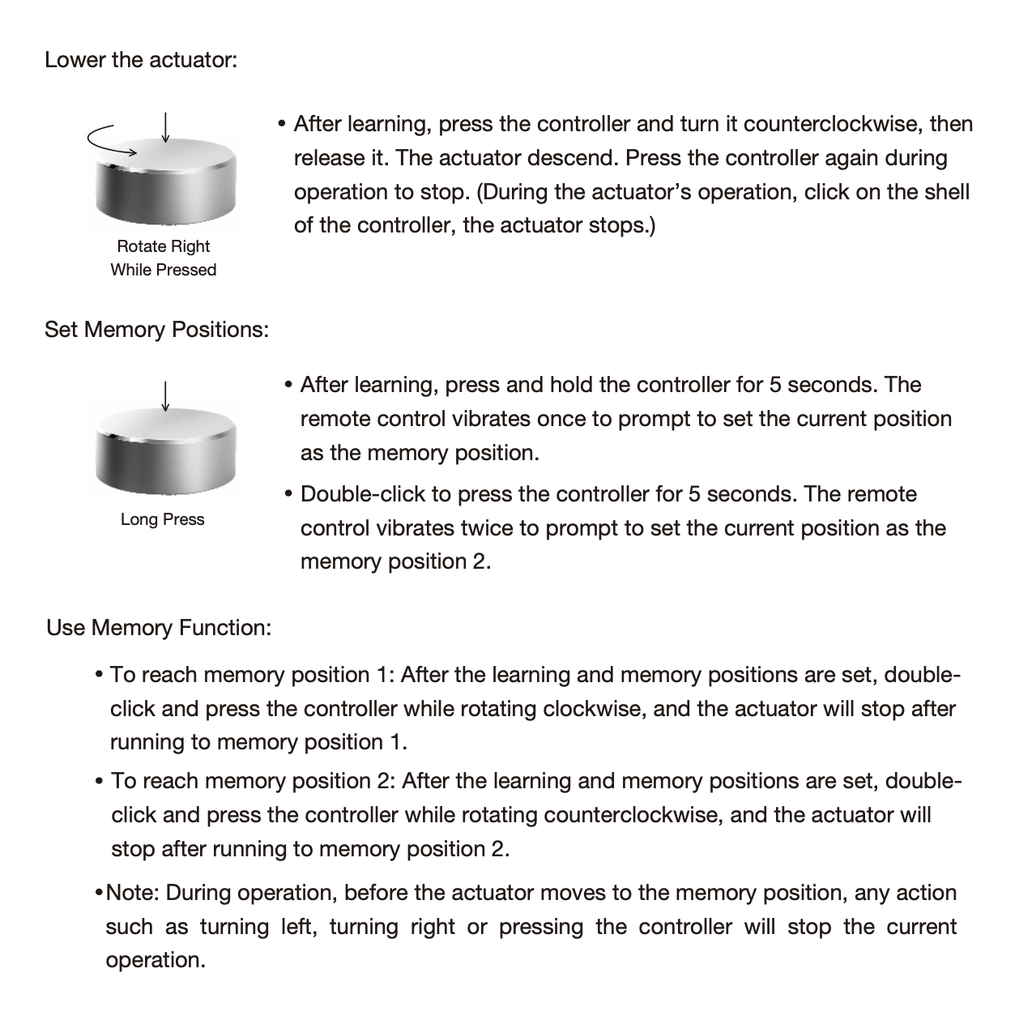

Lower the actuator:
Paina ohjainta ja käännä sitä vastapäivään, jonka jälkeen vapauta painike. Moottori lähtee laskemaan laitetta. Paina ohjainta uudestaan pysäyttääksesi liikkeen. (Moottorin toiminnan aikana painaessasi ohjaimen kuorta, moottori pysähtyy.)
Muistipaikkojen asennus:
Yhteyden luomisen jälkeen paina pohjassa ohjainta 5 sekunnin ajan. Kauko-ohjain värähtää kerran ilmoituksena, että kyseinen korkeus on asennettu muistipaikkaan.
Paina kaksoisklikkaamalla ohjainta 5 sekunnin ajan. Kauko-ohjain värähtää 2 kertaa ilmoituksena, että kyseinen korkeus on asennettu muistipaikkaan nro 2.
Muistitoiminnon käyttäminen:
Liikuttaaksesi pöytä muistipaikkaan 1: Kun yhteys laitteiden välillä on luotu ja muistipaikat tallennettu, toimi seuraavasti. Kaksoisklikkaa ja paina ohjainta samalla, kun käännät sitä myötäpäivään, jolloin moottori liikuttaa pöydän muistipaikkaan 1 tallennettuun korkeuteen.
Liikuttaaksesi pöytä muistipaikkaan 2: Kun yhteys laitteiden välillä on luotu ja muistipaikat tallennettu, toimi seuraavasti. Kaksoisklikkaa ja paina ohjainta samalla, kun käännät sitä vastapäivään, jolloin moottori liikuttaa pöydän muistipaikkaan 2 tallennettuun korkeuteen.
Huom!: Moottorin liikkuessa kohti tallennettua muistipaikkaa, ohjaimen uudelleen painaminen tai kääntäminen eri suntiin pysäyttää sen hetkisen toiminnon ja liikkeen.
Langaton Käsiohjain JCHR35R1
Ei myynnissä
